Speaking of the two modules of an intelligent security system. As you can clearly see, this is the Vichnet intelligent security system integrated demonstration area.
Our set of intelligent security protection system is mainly composed of several modules, today mainly introduces the protection module, function module.
When it comes to our Vichnet safety fence, we mainly customize the safety protection system for mechanical equipment, assembly line, plant isolation and intelligent storage to realize man-machine isolation, protect personal safety and ensure efficient production.
1. The overall protective structure formed by the installation of modular components of our safety fence has the characteristics of convenient installation and strong operation.
2. Surface treatment with environmental protection spray, in line with RoHS environmental testing requirements, spray layer cover thickness uniform, thickness through SGS test.
3. Each screen is standardized design, optional door kit can be integrated to use the door, the conventional door has hinged door, translation door, folding door, hanging rail door and so on.
4. Horizontal wire in the inside, vertical wire in the outside, to prevent external climbing, increase safety protection level.
5. In terms of security details, the fence itself should not produce new security risks. We use flat welding at the screen and frame welding, without sharp edges and corners, to avoid scratches.
Another look at the protection module, it is mainly composed of safety switch, light screen, safety pad and other sensors protection device.

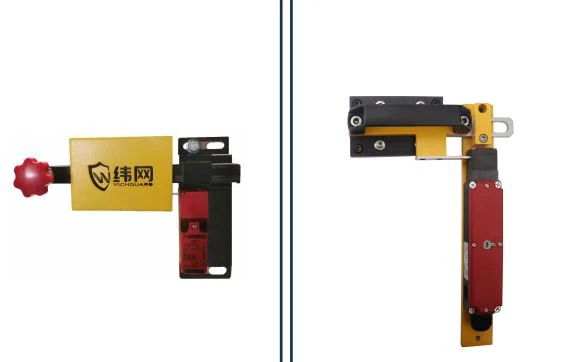

1. Safety switch
What we show here is a safety switch with a safety lock, which can realize the functions of electrolytic lock and output signal. The advantage is that the safety switch can be unlocked only when the opening signal is given to unlock, such as pressing the request to enter the button, and the door can be opened only when the device is allowed to enter after completely stopping. At this time, entering is relatively safe. (Generally using peel magnetic series) Common switch, when the equipment is working normally, the latch may be loosened due to vibration and other human contact reasons, so that the equipment will stop unexpectedly.
1. Safety light screen
It is generally used for tunnel protection, such as the inlet and outlet of the assembly line, and the passage that is often in and out. Where it is not convenient to design the safety door, it can detect people or materials with light curtain. When people or materials block any light beam of the light screen will trigger the signal, at this time you can do different control according to the actual application scenarios, such as triggering the signal to suspend or stop the equipment and other actions, at the same time you can have the status of the alarm display.
2. Safety pads.
Whether for machines, production lines, or semi-automatic machinery, safety pads provide maximum safety protection against hazards in moving areas of any shape, thereby protecting humans and robots. The operation mode of the safety pad is similar to that of the general switch element. When a person steps on or weighs heavily against the safety pad, a signal is given to control the machine. (Related accessories generally mainly use Peel magnetic series)
