Pvc Fiber Optic Cable Tray

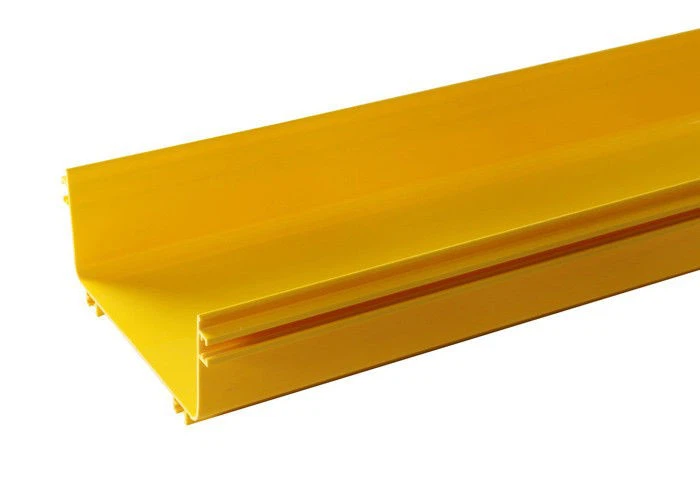

Fiber cable trays, also known as optical fiber cable runner, is a system designed to protect and route fiber optic patch cords, multi-fiber cable assemblies, and interfacility fiber cable (IFC) to and from fiber splice enclosures, fiber distribution frames and fiber optic terminal devices.

Send Inquiry

Description

Products DescriptionTel：+8613094835367

Extremely durable

Easy installation
Longer life
P/N Definition：CF120: CF means fiber cable tray, 120 means the width 120mm, the height is 100mm, HxW refers to inner size, the length is 2000mm per piece

Part Number	Height	Width	Length	Weight
CF120	100	120	2000	4.52kg
CF240	100	240	2000	5.88kg
CF300	100	300	2000	7.42kg
CF360	100	360	2000	8.08kg

fiber cable tray

The straight section of fiber cable tray and cover is manufactured from flame-retardant PVC, basic components and covers are made from flame-retardant ABS, the material of flexible tube is PP. Flame-retardant material rated UL94 FV-0.

The color of fiber cable tray is yellow，color code：Pantone 123C.

Closed design，protect the fiber optic cables from damage. Fiber raceway duct is made from flame-retardant plastic materil with smooth surface and good appearance. Offers excellent bend radius control and ensures fiber radius≧40mm Movable cable exit kit is optional to satisfy the expanding request of date center. Different kind of installation way is available like hanging, cabinet top supporting or connecting with other cable tray.
