Heavy Duty 600mm Aluminum Alloy Metal Solid Cable Tray Electrical Steel Colored Cable Trunking Tray Raceway Bracket Manufacturer with Low Price List

Heavy Duty 600mm Aluminum Alloy Metal Solid Cable Tray Electrical Steel Colored Cable Trunking Tray Raceway Bracket Manufacturer with Low Price List

Send Inquiry
Description
Our company continuously absorbs and introduces domestic and foreign technology, and develops a variety of high-tech and practical Plastic Speed Bumps, Cable Tray, PVC Cable Trunking. We have strong technical force and stable quality products and constantly improve ourselves. We have always adhered to this simple concept: to make the best products and let customers rest assured. We will march towards a higher and farther goal for the future.

Product Description

Cable trunking is a more reliable, less expensive solution for supporting and protecting cables. Handling, lifting anf fitting operations are inherently safer, easier and quicker.

 Vichnet cable trunking is produced under the standards of EN:61537:2007.



Cable trunking is produced in 2 meters length, other lengths are also available as customer's request.



Material

Surface finish

Thickness of coating

Short

Application enviroument

Mediun Carbon steel

Zinc coating

>12μm

EZ

Indoor

Powder coating

>60μm

PC

Indoor.need color

Hot dip galvanized

>60μm

HDG

Ourtdoor, Indoor

Pre-galvanized steel

7-8μm

GI

Indoor

Nickel coating


Ni

Indoor, outdoor

Stainless steel SS304

Acid washing+polishing(option)

N/A

SS304

outdoor, Indoor

Stainless steel SS316

Acid washing+polishing(option)

N/A

SS316

High corrosion occasions

Stainless steel SS316L

Acid washing+polishing(option)

N/A

SS316L

High corrosion occasions

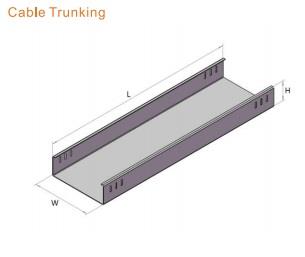

Dimensions



Part Number

H (inch)

W (inch)

L (inch)

Material: carbon steel

Thickness (inch)

Weight (kgs)

CT2-2

2

2

118

0.04

4.36617

CT2-4

2

4

118

0.04

6.549255

CT2-6

2

6

118

0.06

13.4623575

CT2-8

2

8

118

0.06

17.1008325

CT2-12

2

12

118

0.06

24.3777825

CT2-16

2

16

118

0.08

42.20631

CT2-20

2

20

118

0.08

51.90891

CT4-12

4

12

118

0.04

17.46468

CT4-16

4

16

118

0.06

33.47397

CT4-20

4

20

118

0.06

40.75092

CT4-24

4

24

118

0.06

48.02787


Thickness choose

Width (Steel)

Material: Carbon steel

cable tray Thickness

Cable tray cover thichness

<4"

0.04 inch /1mm

0.04 inch /1mm

4"---6"

0.05 inch/1.2mm

0.04 inch /1mm

6"---16"

0.06 inch/1.5mm

0.04 inch /1mm

16"---32"

0.08inch/2.0mm

0.06 inch/1.5mm

32"---40"

0.10inch/2.5mm

0.08inch/2.0mm

>40"

0.12inch/3.0mm

0.10inch/2.5mm


Loading Capability

Cable trunking meets load/span designation in accordance with EN:61537


Metal cable Trunking

Follow is traditional cable tray safe loading capacity: Standard:IEC:61537-2007

Support Span

5ft

10ft

15ft

support distance 2m

Height

Safe Load Data
(LBF/FT)

Deflection
(In)

Safe Load Data
(LBF/FT)

Deflection
(In)

Safe Load Data
(LBF/FT)

Deflection
(In)

2"

69

0.157

N/A

N/A

N/A

N/A

200kg/m

3"

69

0.157

N/A

N/A

N/A

N/A

4"

137

0.157

103

0.314

34

0.885

6"

171

0.157

103

0.314

51

0.885
