Aluminum Stainless Steel and Galvanized Ladder Cable Tray with Low Price

Aluminum Stainless Steel and Galvanized Ladder Cable Tray with Low Price

Aluminium Cable ladder is a more reliable, less expensive solution for supporting and protecting cables. Handling, lifting and fitting operations are inherently safer, easier and quicker.
Cable ladder is more reliable. Less expensive solition for supporting large volumes of heavy duty cables.
Send Inquiry
Description
With the summary of our own production experience and the continuous absorption of advanced experience, we have the ability to produce high-quality Fiber Optic Cable, Steel Yellow Bollard, Patch Cord. Customer satisfaction is our goal. Our corporate mission is to promote industrial spirit, pursue perfect quality, provide professional services, and create a comfortable environment. Our company strives for survival by quality, occupies the market with reputation, promotes development with science and technology, and seeks benefits from management. With a professional attitude and excellent quality, we have won the trust and support of our customers as well as a broad and stable market.

Product Description

Product Name:

Aluminium Cable Ladder

Material: Aluminium

Brand: VICHNET cable ladder

Application: Industrial Shed,Commercial Building,Data Center, Hospital, Mall,Hotel,Parking Shed etc

Width: 50~1000mm

Length:2000mm~3000mm

Aluminium Cable ladder is chosen by customers because of its good performance in marine environments. And less weight, more reliable is also its advantages compared with our products.

VICHNET cable ladders are designed to be safe. All parts have no sharp edges to protect cable.

Just like most manufacturers, the standard length of Vichnet Aluminium Cable Ladder is 10 foot (3000mm).

Other length is also available for customer's request


Specifications

· Aluminium class: side rails 50,100,150 and 200mm

· Standard widths: 100, 150, 200, 300, 400, 500 and 600 mm

· Supplied in 3 meter lengths



Part Number

H (inch)

W (inch)

L (inch)

Material:Aluminum

Thickness(inch)

Weight(kgs)

CL2-2

2

2

118

0.08

3.491397

CL2-4

2

4

118

0.08

3.886974

CL2-6

2

6

118

0.08

4.282551

CL2-8

2

8

118

0.08

4.678128

CL4-12

4

12

118

0.08

7.189182

CL4-16

4

16

118

0.1

9.97542

CL4-20

4

20

118

0.1

10.9643625

CL4-24

4

24

118

0.1

11.953305

CL4-28

4

28

118

0.1

12.9422475

CL4-32

4

32

118

0.12

16.717428

CL4-36

4

36

118

0.12

17.904159

CL4-54

4

54

118

0.12

23.837814

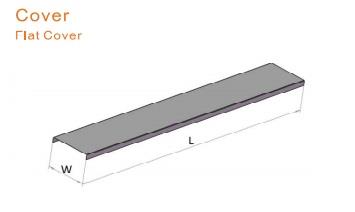

Part Number

H (inch)

W (inch)

L (inch)

Material: Aluminum

Thickness(inch)

Weight(kgs)

CL2-2-CVR

2

2

40

0.06

0.3822

CL2-4-CVR

2

4

40

0.06

0.6552

CL2-6-CVR

2

6

40

0.06

0.9282

CL2-8-CVR

2

8

40

0.06

1.2012

CL4-12-CVR

4

12

40

0.06

1.7472

CL4-16-CVR

4

16

40

0.08

2.8665

CL4-20-CVR

4

20

40

0.08

3.549

CL4-24-CVR

4

24

40

0.08

4.2315

CL4-28-CVR

4

28

40

0.08

4.914

CL4-32-CVR

4

32

40

0.1

6.7158

CL4-36-CVR

4

36

40

0.1

7.5348

CL4-54-CVR

4

54

40

0.1

11.6298



Part Number

H (inch)

W (inch)

Thickness(inch)

CL-ELB902-2

2

2

0.04

CL-ELB902-4

2

4

0.04

CL-ELB902-6

2

6

0.05

CL-ELB902-8

2

8

0.06

CL-ELB904-12

4

12

0.06

CL-ELB904-16

4

16

0.08

CL-ELB904-20

4

20

0.08

CL-ELB904-24

4

24

0.08

CL-ELB904-28

4

28

0.08

CL-ELB904-32

4

32

0.1

CL-ELB904-36

4

36

0.1

CL-ELB904-54

4

54

0.12


Part Number

H (inch)

W (inch)

Thickness(inch)

CL2-2-TEE

2

2

0.04

CL2-4-TEE

2

4

0.04

CL2-6-TEE

2

6

0.05

CL2-8-TEE

2

8

0.06

CL4-12-TEE

4

12

0.06

CL4-16-TEE

4

16

0.08

CL4-20-TEE

4

20

0.08

CL4-24-TEE

4

24

0.08

CL4-28-TEE

4

28

0.08

CL4-32-TEE

4

32

0.1

CL4-36-TEE

4

36

0.1

CL4-54-TEE

4

54

0.12

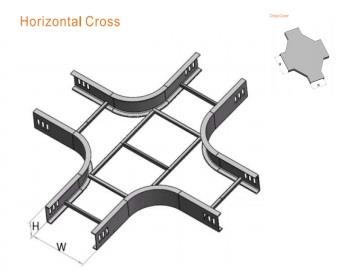

Part Number

H (inch)

W (inch)

Thickness(inch)

CL2-2-CRS

2

2

0.04

CL2-4-CRS

2

4

0.04

CL2-6-CRS

2

6

0.05

CL2-8-CRS

2

8

0.06

CL4-12-CRS

4

12

0.06

CL4-16-CRS

4

16

0.08

CL4-20-CRS

4

20

0.08

CL4-24-CRS

4

24

0.08

CL4-28-CRS

4

28

0.08

CL4-32-CRS

4

32

0.1

CL4-36-CRS

4

36

0.1

CL4-54-CRS

4

54

0.12

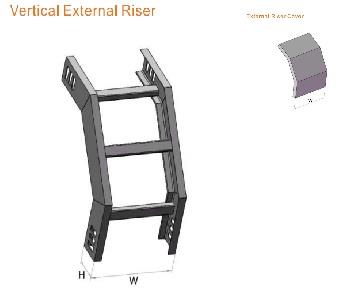

Part Number

H (inch)

W (inch)

Thickness(inch)

CL2-2-ERS

2

2

0.04

CL2-4-ERS

2

4

0.04

CL2-6-ERS

2

6

0.05

CL2-8-ERS

2

8

0.06

CL4-12-ERS

4

12

0.06

CL4-16-ERS

4

16

0.08

CL4-20-ERS

4

20

0.08

CL4-24-ERS

4

24

0.08

CL4-28-ERS

4

28

0.08

CL4-32-ERS

4

32

0.1

CL4-36-ERS

4

36

0.1

CL4-54-ERS

4

54

0.12

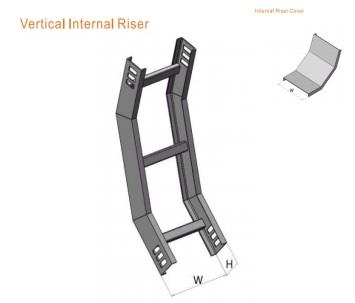

Part Number

H (inch)

W (inch)

Thickness(inch)

CL2-2-IRS

2

2

0.04

CL2-4-IRS

2

4

0.04

CL2-6-IRS

2

6

0.05

CL2-8-IRS

2

8

0.06

CL4-12-IRS

4

12

0.06

CL4-16-IRS

4

16

0.08

CL4-20-IRS

4

20

0.08

CL4-24-IRS

4

24

0.08

CL4-28-IRS

4

28

0.08

CL4-32-IRS

4

32

0.1

CL4-36-IRS

4

36

0.1

CL4-54-IRS

4

54

0.12

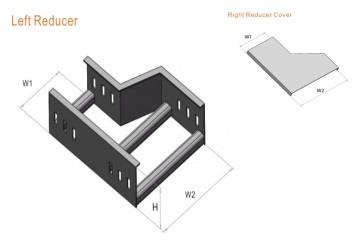

Part Number

H (inch)

W1 (inch)

W2 (inch)

Thickness(inch)

CL2-2-LRDC

2

2

bigger than W1

0.04

CL2-4-LRDC

2

4

bigger than W1

0.04

CL2-6-LRDC

2

6

bigger than W1

0.05

CL2-8-LRDC

2

8

bigger than W1

0.06

CL4-12-LRDC

4

12

bigger than W1

0.06

CL4-16-LRDC

4

16

bigger than W1

0.08

CL4-20-LRDC

4

20

bigger than W1

0.08

CL4-24-LRDC

4

24

bigger than W1

0.08

CL4-28-LRDC

4

28

bigger than W1

0.08

CL4-32-LRDC

4

32

bigger than W1

0.1

CL4-36-LRDC

4

36

bigger than W1

0.1

CL4-54-LRDC

4

54

bigger than W2

0.12

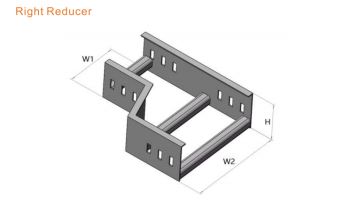

Part Number

H (inch)

W (inch)

W2 (inch)

Thickness(inch)

CL2-2-RRDC

2

2

bigger than W1

0.04

CL2-4-RRDC

2

4

bigger than W1

0.04

CL2-6-RRDC

2

6

bigger than W1

0.05

CL2-8-RRDC

2

8

bigger than W1

0.06

CL4-12-RRDC

4

12

bigger than W1

0.06

CL4-16-RRDC

4

16

bigger than W1

0.08

CL4-20-RRDC

4

20

bigger than W1

0.08

CL4-24-RRDC

4

24

bigger than W1

0.08

CL4-28-RRDC

4

28

bigger than W1

0.08

CL4-32-RRDC

4

32

bigger than W1

0.1

CL4-36-RRDC

4

36

bigger than W1

0.1

CL4-54-RRDC

4

54

bigger than W2

0.12


Part Number

H (inch)

W (inch)

W2 (inch)

Thickness(inch)

CL2-2-RDC

2

2

bigger than W1

0.04

CL2-4-RDC

2

4

bigger than W1

0.04

CL2-6-RDC

2

6

bigger than W1

0.05

CL2-8-RDC

2

8

bigger than W1

0.06

CL4-12-RDC

4

12

bigger than W1

0.06

CL4-16-RDC

4

16

bigger than W1

0.08

CL4-20-RDC

4

20

bigger than W1

0.08

CL4-24-RDC

4

24

bigger than W1

0.08

CL4-28-RDC

4

28

bigger than W1

0.08

CL4-32-RDC

4

32

bigger than W1

0.1

CL4-36-RDC

4

36

bigger than W1

0.1

CL4-37-RDC

4

54

bigger than W2

0.12



Part Number

L (inch)

CTPL-ABR2

2

CTPL-ABR4

4

CTPL-ABR6

6

CTPL-ABR8

8

CTPL-ABR12

12

CTPL-ABR36

36


Part Number

L (inch)

CTPL-BAR2

2

CTPL-BAR4

4

CTPL-BAR6

6

CTPL-BAR8

8

CTPL-BAR12

12

CTPL-BAR36

36

CTPL-BAR54

54


Part Number

L (inch)

CTPL-CNL2

2

CTPL-CNL4

4

CTPL-CNL6

6

CTPL-CNL8

8

CTPL-CNL12

12

CTPL-CNL16

16

CTPL-CNL20

20

CTPL-CNL24

24

CTPL-CNL28

28

CTPL-CNL32

32

CTPL-CNL36

36

CTPL-CNL54

54


Part Number

L (inch)

CTPL-WBR2

2

CTPL-WBR4

4

CTPL-WBR6

6

CTPL-WBR8

8

CTPL-WBR12

12


Part Number

L (inch)

CTPL-HDB2

2

CTPL-HDB4

4

CTPL-HDB6

6

CTPL-HDB8

8

CTPL-HDB12

12

CTPL-HDB16

16

CTPL-HDB20

20

CTPL-HDB24

24

CTPL-HDB28

28

CTPL-HDB32

32

CTPL-HDB36

36

CTPL-HDB54

54


Part Number

L (inch)

CTPL-AMB2

2

CTPL-AMB4

4

CTPL-AMB6

6

CTPL-AMB8

8

CTPL-AMB12

12

CTPL-AMB16

16

CTPL-AMB20

20

CTPL-AMB24

24

CTPL-AMB28

28

CTPL-AMB32

32

CTPL-AMB36

36

CTPL-AMB54

54


Connector


Part Number

H (inch)

L (inch)

CTPJ-SCN2

2

7

CTPJ-SCN3

3

7

CTPJ-SCN4

4

7

CTPJ-SCN5

5

7

CTPJ-SCN6

6

15

CTPJ-SCN8

8

15

Horizontal Connector


Part Number

H (inch)

L (inch)

CTPJ-HCN1

1

3.6

CTPJ-HCN2

2

3.6

CTPJ-HCN3

3

3.6

CTPJ-HCN5

5

7.5

CTPJ-HCN7

7

7.5

Vertical Adjustable Connector


Part Number

H (inch)

L (inch)

CT2-2

2

6.5

CT2-3

3

7.5

CT2-5

5

13.4

CT2-7

7

15.4

Width Adjustable Connector


Part Number

H (inch)

B (inch)

CTPJ-WACN2-2

2

2

CTPJ-WACN2-4

2

4

CTPJ-WACN4-2

4

2

CTPJ-WACN4-4

4

4

CTPJ-WACN4-6

4

6

CTPJ-WACN4-8

4

8

Height Adjustable connector


Part Number

H1 (inch)

H2 (inch)

CTPJ-HACN2-3

2

3

CTPJ-HACN2-4

2

4

CTPJ-HACN2-6

2

6

CTPJ-HACN4-6

4

6

CTPJ-HACN4-8

4

8


Advantage

· Easy and flexible for installation

· Light weight with an outstanding loading capacity

· Change cable ladder to pass obstacles without using extra parts
