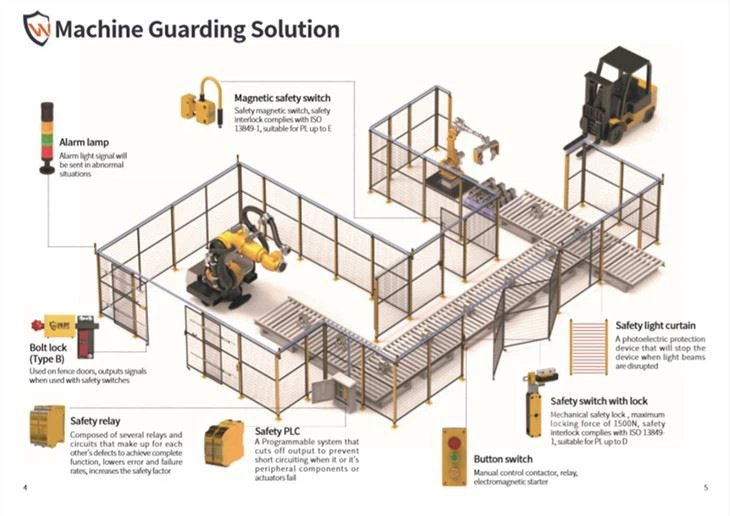

Customize Industrial Safety Fencing Equipment Guarding systems for mechanical equipment, assembly lines, workshop partition, and smart warehousing to achieve human-machine isolation, protect personal safety, and ensure efficient production.
Machine Guarding product:
MESH APERTURE：25x100 FRAME
SIZE：20mmx30mmx1.5mm
WIRE DIAMETER：3.0mm/4.0mm
GROUND CLEARANCE：140mm
SURFACE TREATMENT：Powder coating
PRODUCT COLOR：Yellow (RAL1023), Black (RAL9005)
HIGH SAFETY:
1. Impact protection design in line with European standards.
2. Horizontal wire welded on the inside and the vertical wire on the outside, to prevent climbing from outside.
3. Metal wires are welded flat onto the frame without sharp edges to prevent scratches and injuries.
STRONG WELDING:
1. Weld with intermediate frequency welder.
2. Stiffener design enhances strength.
3. Metal wires are welded flat onto the frame to expand contact area and enhance strength.
LONG-TERM ANTIRUST: Our twice acid washing and phosphating finishing technique creates a protective layer before powder coating to enhance rust resistance.

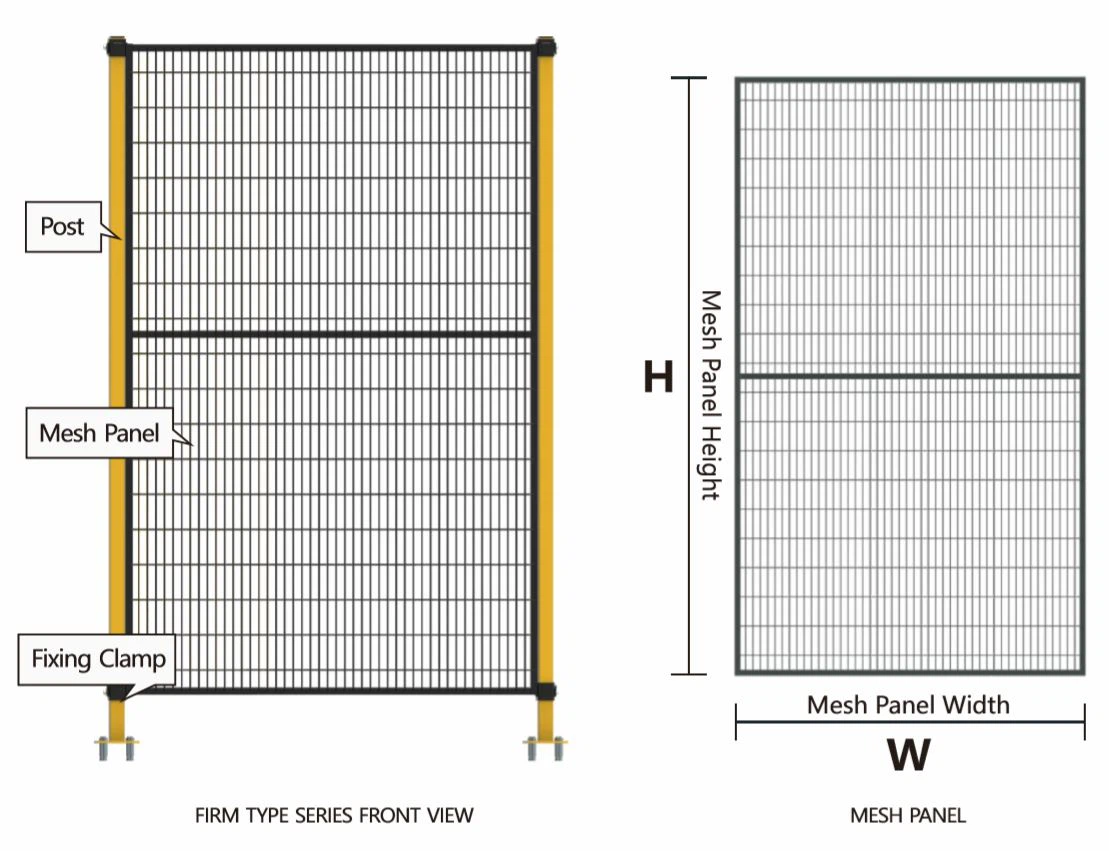

Product Dimensions |
Machine Guard Fencing Model | Mesh panel Height(H) | Mesh Panel Width(W) | Mesh Aperture | Diameter | Product Color |
KKGD-HxW-25x100x3.0-BLK | 500≤H≤2350 | 200≤H≤1400 | 25×100 | 3.0/4.0 | black/yellow |
KKGD-HxW-25x100x4.0-BLK | 2350≤H≤2800 | 200≤H≤1000 | 25×100 | 4.0 | black/yellow |
COLOR MANAGEMENT PRINCIPLES IN THE INDUSTRIAL SCENE
COLOR MANAGEMENT PRINCIPLES IN THE INDUSTRIAL SCENE
1. For scenes that require good visibility and no interference with effective supervision, such as around robotic arms, black or gray mesh panels will be more suitable choices.
2. For scenes that require safety warning, such as around dangerous furnaces, yellow or red mesh panels will be more suitable choices.
3. Without visibility or warning requirements, you can choose colors according to aesthetic preferences.
POST SIZE: 40x60x2.0/60x60x2.0
OVERALL HEIGHT: 1000mm-3000mm
SURFACE TREATMENT: Powder coating
FUNCTION: Set up frames, fix positions, and connect mesh panels.
TWO OPTIONS:
1. Fix mesh panel with the upper and lower clamps. Limiting hole is used to fix the lower clamp.
2. Fix mesh panel with bolts mounted into preformed holes.
Smart Lock![BKRAEG2]T[ODT}CW~0}C$02_](/Content/uploads/2022496700/2022042614310146912b2f90064144b09d3603ea1e2823.png)

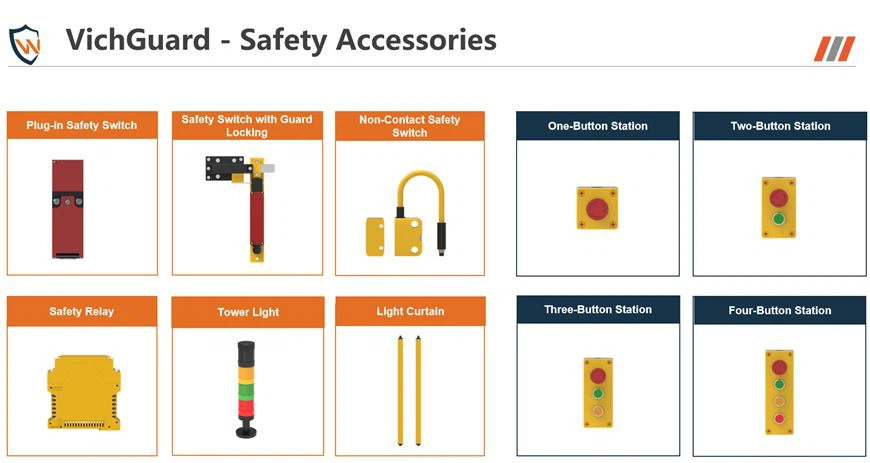

We have full safety Accessories and Smart lock for Industrial Safety Fencing Equipment Guarding. Protect people and machine.
